Industrial sewing machines deliver consistent output only when operators control dirt, friction, needle condition, and machine settings. Small maintenance failures create skipped stitches, thread breaks, fabric damage, and unplanned downtime. A clear routine keeps moving parts aligned and helps operators spot wear before production stops.
The routine combines daily cleaning, proper lubrication, careful adjustments, and scheduled service. Selecting suitable industrial sewing machines for the task is the starting point, followed by matching the setup to the work and recording each machine’s condition. The following steps cover the areas that matter most for consistent performance.

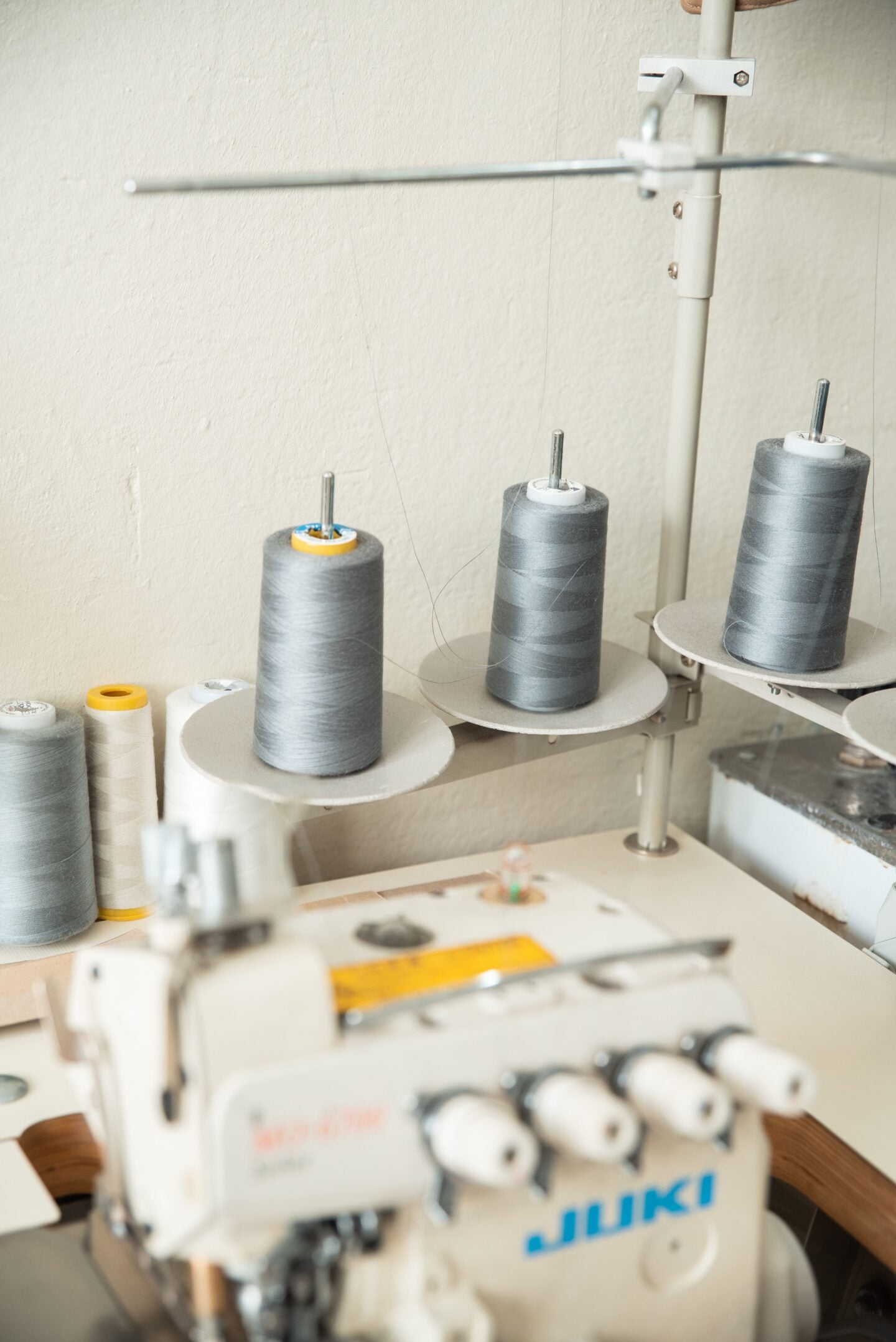

Source: Pexels
Start With The Correct Machine Setup
Material weight, stitch type, needle size, thread size, and feed method must match the production task. A machine set for lightweight fabric should not handle heavy layers without the correct needle, presser foot, tension, and feed settings. A proper setup reduces strain on the motor, hook, needle bar, and feed dogs while producing consistent stitches during long runs.
Operators should check the table, motor, belt, and electrical connections before starting work. The machine head must sit securely, and the belt must run without excessive slack or rubbing. A servo motor should accelerate smoothly, while the foot pedal should respond without sticking. Unusual noise, vibration, heat, or odor requires inspection before production continues.
Clean The Machine Every Day
Lint, thread fragments, and fabric dust collect around the needle plate, feed dogs, bobbin case, hook area, and tension discs. Remove this material with a small brush or an approved air method after each shift. High-pressure air can push debris deeper into the hook or tension assembly, so cleaning requires control.
The bobbin area needs close attention because trapped lint affects thread pickup and stitch formation. Remove the bobbin case, brush the surrounding surfaces, and check for scratches or burrs. A clean work area also keeps loose fibers from entering the oil supply or collecting around electrical components.
Lubricate Moving Parts Correctly
Lubrication reduces friction between metal surfaces, but excess oil creates problems. Use the oil type and application points listed in the machine manual. Apply a small amount to the hook race, needle bar, presser bar, and other approved points, then run the machine slowly to distribute it.
Wipe away oil that reaches the needle, presser foot, thread path, or fabric area. Oil on these surfaces can stain materials and weaken thread control. Machines with sealed or automatic lubrication systems require different checks, so operators should follow the manufacturer’s service instructions instead of adding oil by habit.
Replace Needles Before They Fail
A bent, dull, or damaged needle causes skipped stitches, thread breaks, fabric pulls, and needle strikes. Replace the needle after it hits a hard surface, produces irregular stitches, or shows visible wear. Production teams should also set replacement intervals according to material thickness, machine speed, and daily operating hours.
Install each needle with the correct size, orientation, and insertion depth. A needle that sits too high, too low, or backward changes the relationship between the needle, hook, and thread loop. That error can damage the hook or create repeated timing problems.
Check Threading, Tension, And Feed
Thread must pass through every guide, tension disc, take-up lever, and needle eye in the correct order. Incorrect threading changes resistance and often causes loose loops, puckered seams, or frequent breaks. Operators should rethread the machine whenever the thread path becomes uncertain.
Balanced tension keeps the thread lock inside the fabric layers. Adjust the upper tension and bobbin tension in small steps, testing each change on production material. Feed dogs should move evenly, and the presser foot should hold fabric without leaving marks. Remove lint from the feed area before changing feed adjustments.
Inspect Wear And Timing
A weekly inspection should cover the hook, bobbin case, needle plate, feed dogs, presser foot, belt, handwheel, and fasteners. Look for grooves, sharp edges, looseness, and unusual movement. Worn surfaces can damage thread or fabric even when the machine still runs.
Timing requires trained service work because the needle bar and hook must meet within a narrow relationship. Stop production if the machine produces repeated needle strikes, metallic sounds, or skipped stitches after basic adjustments. Early repair usually prevents damage to related parts and limits downtime.
Track Maintenance And Output
A simple maintenance log should record cleaning, lubrication, needle changes, adjustments, repairs, and recurring faults. Production records should also track thread breaks, rejected seams, and stoppage time. Comparing these records helps supervisors identify patterns linked to a machine, material, operator, or shift.
Maintenance schedules should match workload rather than follow a single calendar. A machine running heavy fabric for long shifts needs closer inspection than one used occasionally for light material. Clear records help service personnel diagnose faults faster and give managers a factual basis for replacement-part planning.
Conclusion
Better output begins with a repeatable maintenance routine, rather than a last-minute repair. Operators should clean each machine daily, lubricate approved points, replace worn needles, and inspect the hook, feed system, and belt on schedule. Supervisors should record faults beside production results, then adjust service intervals when recurring problems appear. The next practical step is a shift checklist that assigns each task, records completion, and flags unusual noise, heat, vibration, or stitch changes before downtime grows.
